Bosch

GDB 350 WE Diamond Drill

Power through concrete – drill holes of up to 350 mm in diameter, Long lifetime due to robust design and gearbox with oil-bath lubrication
Technical data
Additional data
Rated input power3,200 W
Tool holder1 1/4" UNC
Weight11.9 kg
Drilling range350 mm
Tool dimensions (width)142 mm
Tool dimensions (length)534 mm
Tool dimensions (height)168 mm
SuitabilityWet drilling in concrete
Drilling range, bench-mounted
Concrete, possible range350 mm

Advantages

Power through concrete – drill holes of up to 350 mm in diameter

  • 3200 watt motor and 3-speed gearbox for core drilling up to 350 mm in reinforced concrete
  • Long lifetime due to robust design and gearbox with oil-bath lubrication

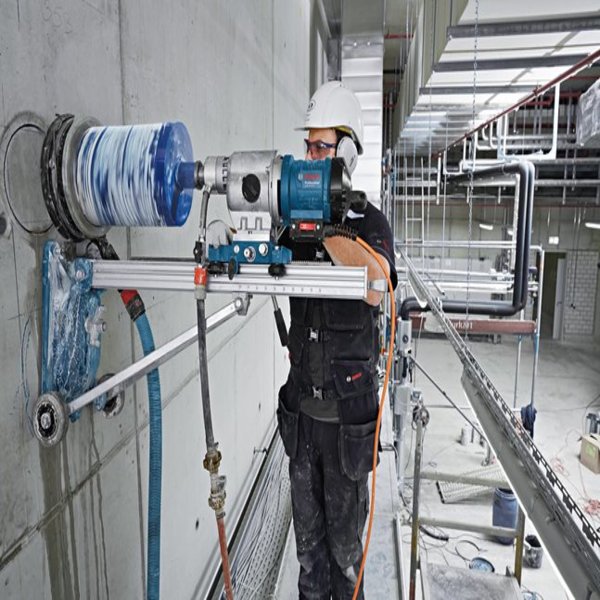

  • Stand-mounted drilling in a system with GCR 350 drill stand (part number 0 601 190 200)
